Height-AdjustableADL Kitchen
Ideal for occupational therapy and cooking practice in care facilities and hospitals.
Supports training in essential movements from food preparation to eating.
Enables realistic training for a variety of upper-limb functions including cooking, dishwashing, and storage.
Available in two models to suit different therapeutic needs and installation environments.
Warm, Wood-Grain Design
Creates a homelike and comforting atmosphere.
Hygienically Designed
Switches are covered with antibacterial film for improved hygiene.
Key Features

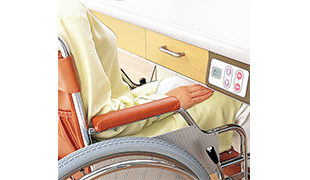

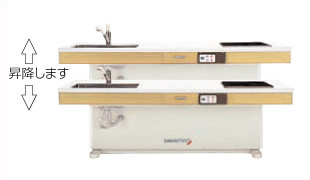

Height-adjustable for wheelchair accessibility.
The sink area is open underneath, allowing easy wheelchair access.
Height indicators show both the top and bottom sink heights; shelf levels are marked for quick reference. All controls are centralized for ease of use.
Designed with Safety in Mind
Safety features include a flat sensor under the sink to prevent pinch injuries, and a mechanism that limits the distance between the sink and overhead shelf during lowering.。
Specifications

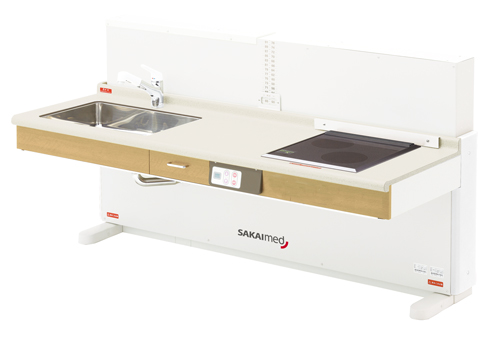

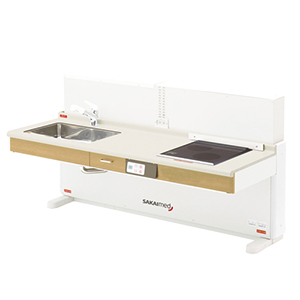

ADL Kitchen – Separate TypeSAD-110L、SAD-110R
| Dimensions | Overall Dimensions／1904（W）×774（D）×1001（H）mm、Sink／600（W）×400（D）×120（H）mm、Sink height (top)／650～900（H）mm |
|---|---|
| Weight | Approx. 170kg |
| Safety Device | Flat sensor under sink |
| Drain | 40A |
| Faucet | Single-lever mixer with shower hose |
| Hot/Cold Water Supply | 15A each |
| Lift Mechanism | Electric actuator system |
| Power | Single-phase 100V 15A / 200V 20A |
| Power Input | 110VA、4000VA |
| Others | 1 IH heater and 1 radiant heater |

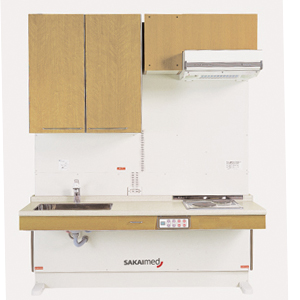

ADL Kitchen – Straight TypeSAD-100L、SAD-100R
| Dimensions | Overall Dimensions／1904（W）×774（D）×2303（H）mm、Sink Dimensions／600（W）×400（D）×120（H）mm、Sink Height (Top Surface)／650～900（H）mm、Shelf Height (Bottom Surface)／1000～1395（H）mm |
|---|---|
| Weight | Approx. 260 kg |
| Safety Features | Flat sensor under sink, shelf descent safety mechanism |
| Drain | 40A |
| Faucet | Single-lever mixer with shower hose |
| Hot/Cold Water Supply | 15A eachA |
| Height Adjustment Mechanism | Electric actuator system |
| Power Supply | Single-phase 100V 15A / 200V 20A |
| Power Input | 300VA、4000VA |
| Others | 1 IH heater and 1 radiant heater |
*A duct for the range hood is required for actual use.
