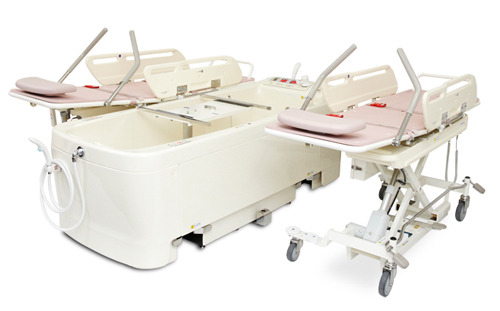

Sleek and compact.
An interactive bathtub designed to fit in small spaces.
Key Features

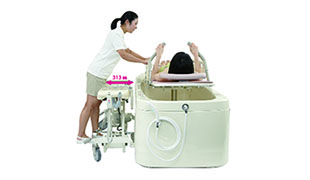

Semi-sliding design enables easy stretcher placement
The stretcher with a width of 313mm features a compact design, allowing it to be placed without bending over.

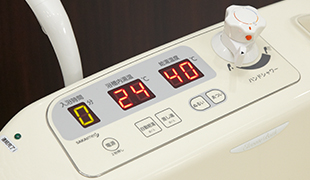

Equipped with an automatic water supply system
The water supply to the desired level can be operated with a single button. Temperature adjustment can also be done with one click. Additionally, it features an electric control mixing system.

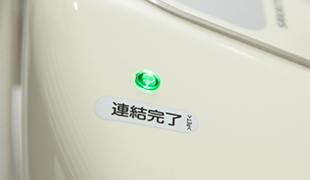

Stretcher drop prevention function in case of error
When entering the bathtub, if the stretcher is not properly connected to the bathtub, it will not slide. Once the stretcher is correctly connected to the bathtub, a "Connection Complete Indicator Light" will provide a visual alert.
Standard with large side protective guards
Standard with large side protective guards, ensuring safety during transfer, movement, and side-body cleaning.

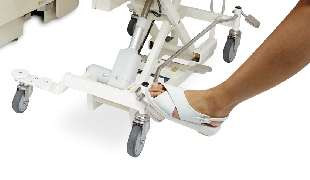

One press to lock
The two wheels on the caster limiter side can be locked in one step.

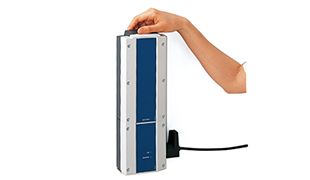

The battery is removable and easy to charge.
During charging, there is no need to move the stretcher to a location with a power outlet. Simply check the indicator to confirm the remaining battery level, providing peace of mind.

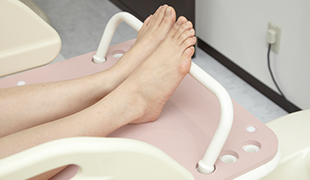

Helps maintain a proper bathing posture
The adjustable footrest, tailored to the user's body type, effectively maintains the proper bathing posture.

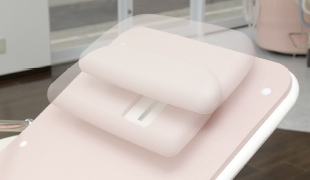

A 40cm wide sliding headrest
With a width of 40 cm, the headrest provides comfort at any position.

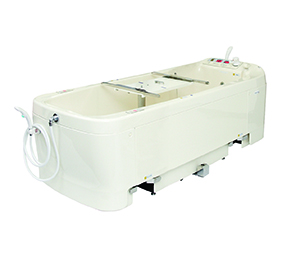

When the bathtub rises
Specifications

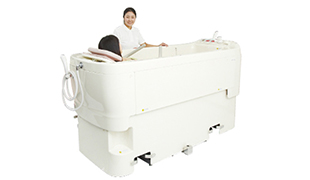

ElevateBathCET-100
| Dimensions | Appearance / 2053(L)×944(W)×760～1200(H)mm
Inside the Bathtub / 1783(L)×714(W)×460(D)mm Bathtub Edge Height / 640mm |
|---|---|
| Weight | Approximately 320kg |
| Bathtub Capacity | Approximately 415L |
| Actual Water Usage | Approximately 340L (for a user 165cm, 65kg) |
| Power Supply | Single-phase 100V |
| Power Consumption | 560W / 800W(640W / 880W：Optional with Bubble Bath) |
| Power Input | 600VA / 860VA(680VA / 915VA：Optional with Bubble Bath) |
| Material | Frame / Steel・Partial Powder Coating , Bathtub・Lid / Fiberglass |
| Other | Connection Completed Indicator Light, Temperature Control System, Electric Control Mixing |

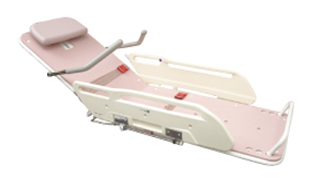

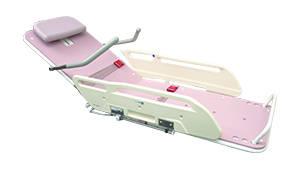

StretcherEWS-100
| Dimensions | 1807(L)×599(W)×263(H)mm |
|---|---|
| Weight | Approximately 45kg |
| Material | Frame / Stainless Steel , Matte / Plastic (EVA Foam) Side Rail / Plastic (Polypropylene) |
| Accessories | Adjustable Footrest |

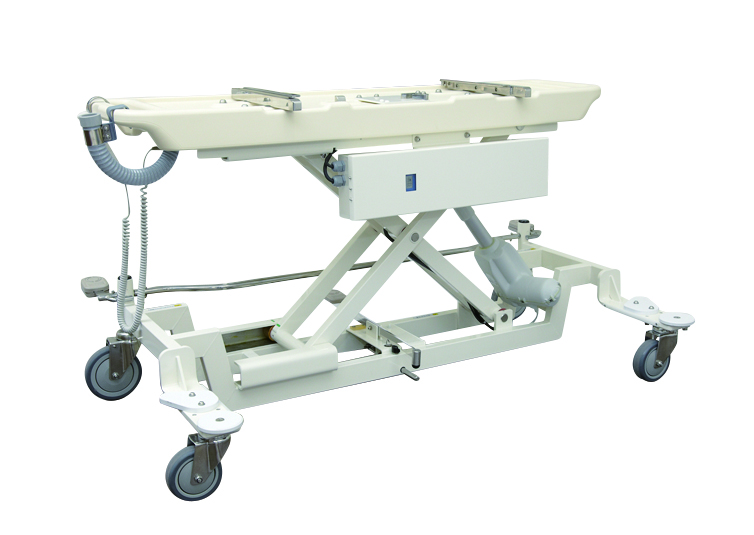

Height-adjustable StretcherEST-100
| Dimensions | Appearance / 1264(L)×724(W)×404～687(H)mm Stretcher Height / 453～ 736mm Casters (Front Wheels) / φ100mm Casters (Rear Wheels) / φ125mm |
|---|---|
| Weight | Approximately 85kg |
| Material | Frame / Stainless Steel ･ Partial Powder Coating Water Tray / Plastic (Polypropylene) |
| Function | Casters / Front two wheels lock individually , Rear two wheels lock simultaneously |
| Number of Lifts | Approximately 50 times |
| Lifting Method | Electric Actuator System |
| Maximum User Weight | 100kg |
| Power Supply | DC24V |
