Shower Bathing System
The shower bathing system now includes a shampoo function.

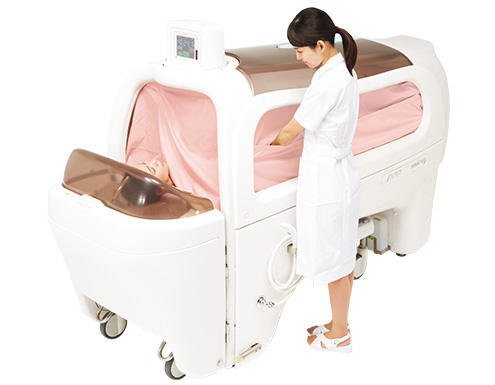

Easy assistance for everyone.
A wide observation window and assistance opening have been designed at a height that makes it easy for even petite women to assist.
Body washing can be done while keeping the curtain closed.
Bathing care can be performed with安心without worrying about water splashes.*Observation window height reduced by 110mm compared to previous models, and the assistance opening has been enlarged by 62% compared to the previous model.
Key Features

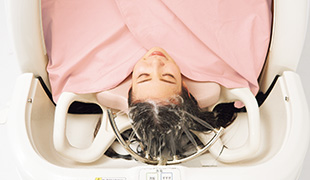

Equipped with an automatic shampoo function.
With just a gentle press, the system automatically performs the entire process from shampooing to rinsing. This allows for a more comfortable bathing care experience.
*Note: For bathers with severe hunchback, some limitations may apply.

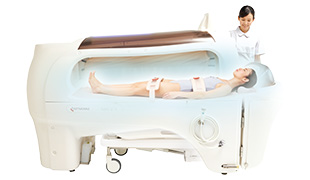

A mist shower with soft mist particles averaging 250μm.
By effectively arranging shower nozzles of different sizes and applying a unique design on the stretcher board, the shower mist covers the entire bath area, helping to raise the body temperature.

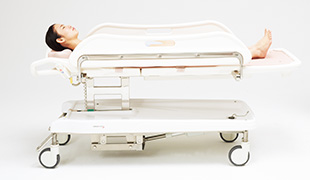

Equipped with a flat stretcher.
Since the stretcher surface is a flat board that prevents the body from sinking, it allows for easy cleaning and transfer in a side-lying position, reducing the caregiver's burden.

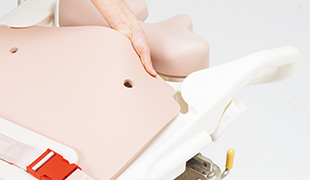

Easier-to-remove stretcher pad.
The stretcher pad can be easily removed by simply inserting it into the four corners.
Standard large protective guard.
Equipped with a standard large protective guard, ensuring safety during transfer, movement, and side-body cleaning.

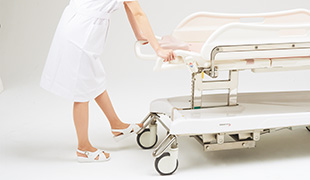

Four-wheel integrated locking casters.
By pressing a single foot pedal, all four wheels are locked and securely fixed.
"LED Warning Light" for clear temperature status at a glance.
The temperature of the mist shower is indicated by the color of the light.
Specifications
PAO Shower Dome with Shampoo Function PAO-220
| Dimensions | Appearance / 2512(L)×980(W)×1553(H)mm
Door Opened / 2972(L)×1619(W)×1553(H)mm Inside the Dome / 1630(L)×700(W)×670(H)mm |
|---|---|
| Weight | Approximately 275kg |
| Material | Frame / Stainless Steel, Water Tank / FRP, Main Body・Front・Rear Shell / FRP, Neck Curtain・Side Curtains / Polyester Fabric, Water Tank / Stainless Steel, Shampoo Kit Housing / FRP, Shampoo Nozzles / Stainless Steel, Shampoo Cover / Plastic (PVC), Shampoo Pad / Plastic (EVA Foam) |
| Number of Shower Nozzles | Top: 10 nozzles (5 per row, 2 rows)
Sides: 6 nozzles (3 per row, 2 rows) |
| Actual Water Usage | Approximately 16 liters per minute |
| Water Tank Capacity | Approximately 80L |
| Power Supply | Single-phase 220V 15A, with grounding |
| Power Input | 340VA(50Hz), 440VA(60Hz) |
| Power Consumption | 340W(50Hz), 450W(60Hz) |
| Accessories | Bathtub Cleaner A, Foam Spray |
| Other | With Storage Tank Unit, With Cleaning Unit |

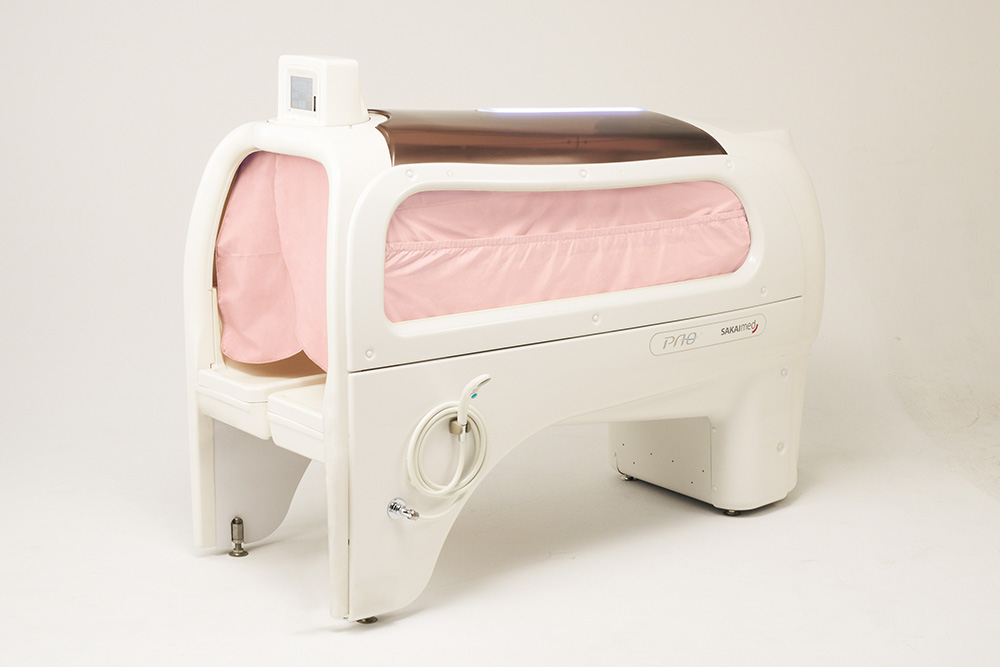

PAO Shower Dome PAO-210（with Water Tank）
| Dimensions | Appearance / 2060(L)×980(W)×1553(H)mm
Inside the Dome / 1630(L)×700(W)×670(H)mm |
|---|---|
| Weight | Approximately 237kg |
| Material | Frame / Stainless Steel, Water Tank / FRP, Main Body・Front・Rear Shell / FRP, Side Shell / Plastic (ABS), Observation Window / Plastic (PVC), Neck Curtain・Side Curtains / Polyester Fabric, Water Tank / Stainless Steel |
| Number of Shower Nozzles | Top: 10 nozzles (5 per row, 2 rows)
Sides: 6 nozzles (3 per row, 2 rows) |
| Actual Water Usage | Approximately 10 liters per minute（At a water supply pressure of 200 kPa） |
| Water Tank Capacity | Approximately 80L |
| Power Supply | Single-phase 220V 15A, with grounding |
| Power Input | 340VA(50Hz) / 470VA(60Hz) |
| Power Consumption | 325W(50Hz), 465W(60Hz) |
| Accessories | Bathtub Cleaner A, Foam Spray |

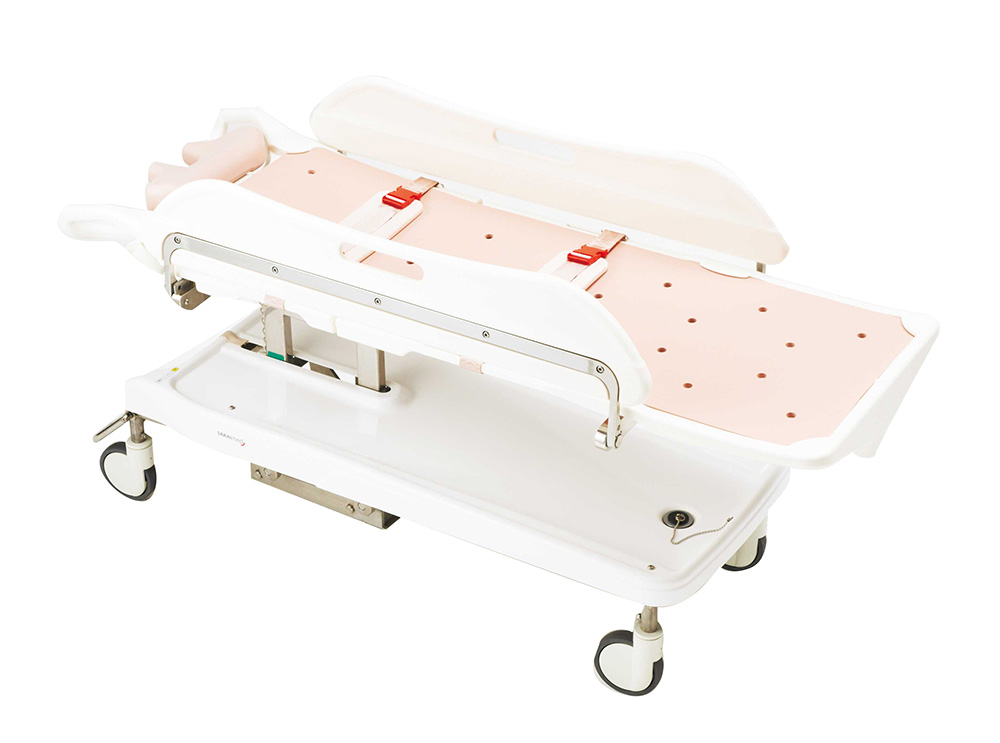

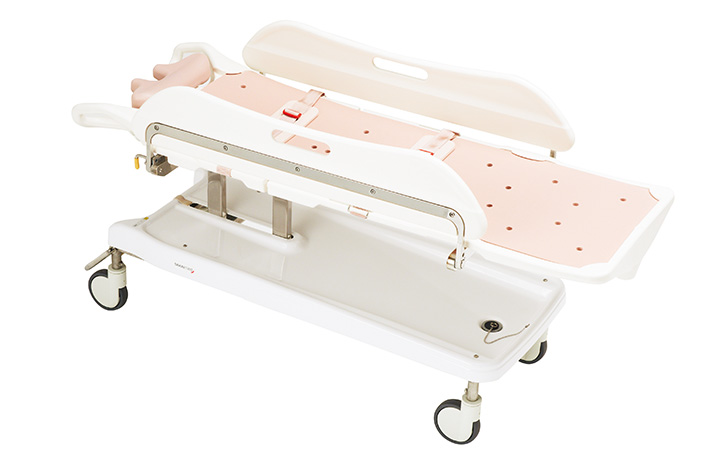

Height-adjustable Stretcher PAS-210
| Dimensions | Appearance / 1937(L)×675(W)×749～989mm(H)mm
Casters / φ150mm |
|---|---|
| Weight | Approximately 100kg |
| Material | Frame (lifting part) / Stainless Steel, Stretcher Surface / Plastic (Polypropylene), Side Guard / Plastic (Polypropylene), Mat / Plastic (EVA Foam), Water Tray / Plastic (ABS) |
| Features | Casters / Four-wheel full lock, Drive System / Electric actuator system |
| Number of Lifts | Approximately 50 times |
| Maximum User Weight | 100㎏ |
| Accessories | Battery (1 unit), Charger |
Stretcher PAS-200
| Dimensions | Appearance / 1937(L)×675(W)×989mm(H)mm Casters / φ150mm |
|---|---|
| Weight | Approximately 60kg |
| Material | Frame (lifting part) / Stainless Steel, Stretcher Surface / Plastic (Polypropylene), Side Guard / Plastic (Polypropylene), Mat / Plastic (EVA Foam), Water Tray / Plastic (ABS) |
| Features | Casters / Four-wheel full lock |
| Maximum User Weight | 100kg |
